Power supply output tester for Antminer Whatsminer 神马,蚂蚁矿机电源输出测试架

Function: Used to detect whether the ASIC miner PSU output is abnormal, such as APW12 series, APW9, APW8, P222C, P221C, P21E, P21D, P21, P20, etc.

Antminer Whatsminer PSU wake up start up tester

This PSU tester is designed to detect whether the voltage output of the Antminer and Whatsminer power supplies is normal. With this instrument, you can independently perform output voltage tests and load tests on the power supply without connecting to the miner to determine whether the miner's power supply is faulty. This greatly reduces the troubleshooting time and makes miner PSU fault detection more convenient and quick.

Test power supply models include:

Antminer: APW121215 a / b / c / d / e / f / g; APW121417 a / b; APW12, APW9, APW9+, APW8, etc.

Whatsminer: P222C, P221C, P21E, P21D, P21, P20.

Advantages of the test stand:

1. The power supply's output voltage can be detected independently without connecting the miner, and the output voltage can determine whether the power supply is faulty.

2. The PSU test fixture indicator light can display the test results intuitively and quickly.

Instructions for use:

1. After the power supply test stand is powered on, press the "↓" button, select the power model downward, connect the power supply to be tested, and press the "▶" button to turn on the power.

2. After pressing the "▶" button, the indicator light next to the power test socket will turn green. Green means the PSU is powered on and there should be output now; Red means the PSU is powered off. If there is no output, please check the PSU model and whether it is normal.

3. Output voltage description: Antminer APW12, APW9, APW8 series power supplies have the highest output voltage of each model. The output voltage of the Whatsminer power supply is 12V.

Note: After testing the Whatsminer PSU, the power supply will be turned off after a 10-30 second delay after the output tester presses the shutdown button. Please pay attention to safety during the test.



神马和蚂蚁电源测试架可以唤醒以下型号的电源：



神马P20，P21，P21D，P21E，P221C，P222C电源

蚂蚁APW8，APW9，APW11、APW12、APW17系列电源

使用说明：

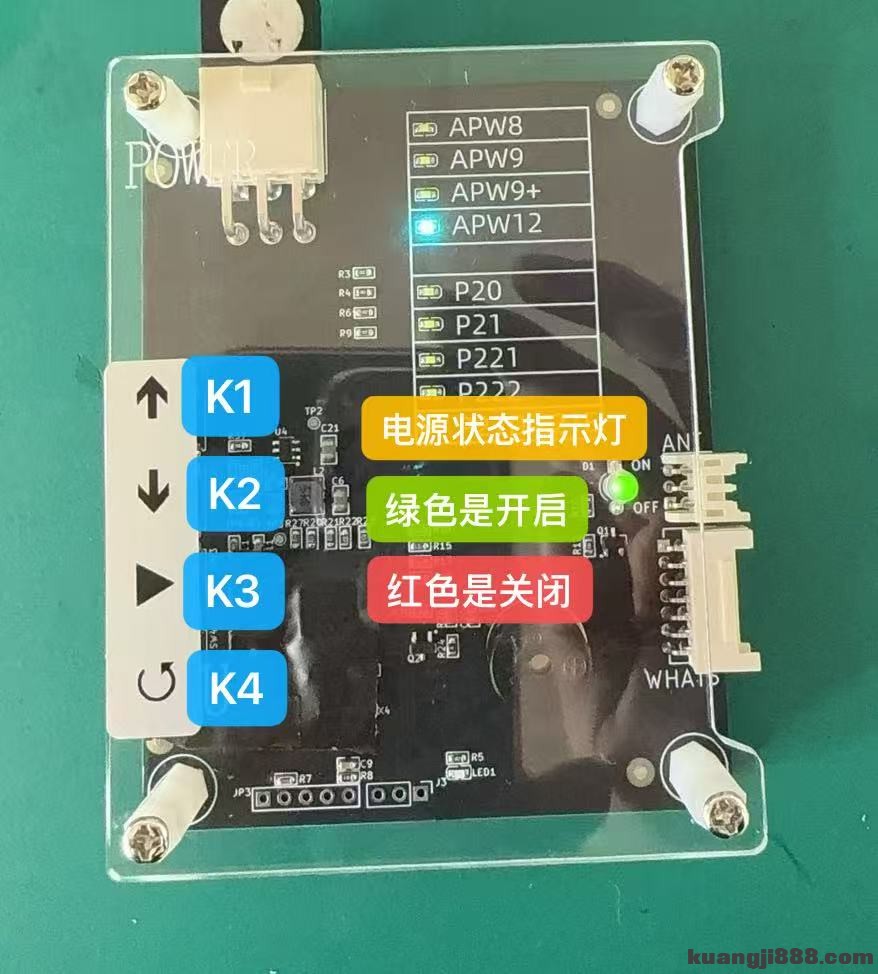

1.将电源测试架通电后，按“K2”按键，向下选择电源型号，图片中选择的型号是APW12，选择电源型号后，连接要测试的电源，然后按“K3”按键，开启电源。

2.按“K3”按键后，电源测试座旁边的指示灯会变成绿色。
绿色表示电源开启，红色表示电源关闭。
3.当按“K3”按键后，电源状态指示灯变成绿色后，此时电源应该有输出，如果没有输出，请检查电源型号和电源是否正常，以及电源的厂家是否在我们的支持范围内。
4.各型号电源被测试架唤醒后的输出电压：蚂蚁APW系列是各型号的最高输出电压。神马电源是12V，神马电源在测试架按下关闭按键后，电源会延时10-30S关闭。测试中请注意安全。
